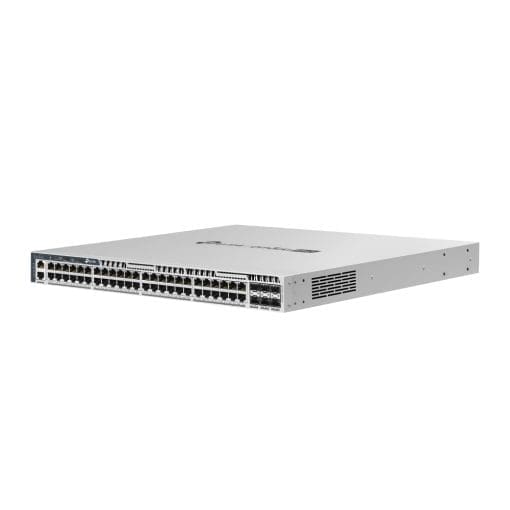

Omada Pro S6500-48M6Y 48-Port 2.5G Stack. L3 mgd. 6x 25G
What This Product Does
Omada Pro S6500-48M6Y is a high-performance L3 managed switch tailored for the access layer, featuring L3 routing, fast 25 Gbps wired speeds, stacking options, and redundant power supply modules*. It includes 48× 2.5 Gbps RJ45 ports, 6× 25 Gbps SFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S6500-48M6Y offers a dependable networking solution for enterprises, campus, and ISPs.
High-speed Connectivity and Powerful Stacking
48× 2.5 Gbps RJ45 ports and 6× 25 Gbps SFP28 slots provide up to 540 Gbps switching capacity per unit. Physical stacking of up to 12 units? enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology
TP-Link Deustchland GmbH
Am Trippelsberg 100
40589 Düsseldorf
support.de@tp-link.com
Beschreibung
> Produkttyp
– Switch
– ear-Kategorie (ElektroG): relevant, Kategorie 6: kleine Geräte der IT- und TK-Technik, Kleine Geräte der IT- und TK-Technik B2C
> Spezifikationen
– Switchingkapazität: 540 GBit/s (Gbps)
> Versand
– WEEE: 85565951
> Anschlüsse
– Konsolenport
– Anzahl RJ45 Ports (1G): 48
– Anzahl SFP Ports (1G): 6
– Anzahl SFP28 Ports (25G): 6
– Anzahl QSFP28 Ports (100G): 4
– Anzahl SFP+ Ports (10G): 26
> Funktionen
– Switch managebar: Ja
> Stromversorgung
– Netzteil: integriert
> Grundeigenschaften
– Farbe: Grau
– Höhe: 44 mm
– Länge/Tiefe: 420 mm
– Breite: 440 mm
> Lieferumfang
– TP-Link Omada Pro S6500-48M6Y Netzwerk-Switch Managed L3 2.5G Ethernet (100/1000/2500) 1U Grau
Zusätzliche Informationen
| Gewicht | 1130 g |
|---|---|
| MPN | S6500-48M6Y |
| Brand Name | TP-Link |
